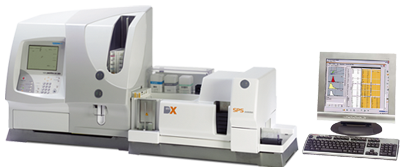

ABX PENTRA DX120 SPS 血液分析仪英文版介绍

姚邵琪

Innovative features
Autoloader with continuous loading capability
Double DIFF Matrix
Automatic reflex testing
Automatic validation of results
DHSS* technology

*ABX Patents
--------------------------------------------------------------------------------

Technical
Weight : 374 lb
Power supply : 100/240 V - 50/60 Hz - 700 W
laser in stand-by 800 W, (2kW maxi).
Dimensions : 29.5 in x 65 in x 22.6 in (H x W x D)
Printer : Laser
Throughput : 120 samples/hour.
Data processing : Windows XP, Floppy disk, CDROM (R/W), RS 232C,TCP/IP, 2 x USB1 Mono and bi-directional connection.
ASTM, HL7 protocol
Memory capacity : 80 GB unlimited patient database
Patient Management : Automatic validation (setting rules), Delta Check, Patient history (matrix, curves, data), manual entry.

--------------------------------------------------------------------------------

Samples
120 samples/hour
Parameters (45) :
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, PLT, MPV, *PCT, *PDW %
NEU, LYM, MON, EOS, BAS, *ALY, *LIC, *IMM, *IML, *IMG : (% and #)
RET (% and #), RETH %, RETM %, RETL %, *IMM %, CRC%, IRF %, MRV, MFI. NRBC % NRBC#, *CWBC *RUO (Research Use Only)


Graphs : High-definition Double DIFF color matrix, Retic color matrix, NRBC color matrix PLT, RBC, courbes WBC/BAS
Volume :
Manual mode : 130 uL
Automatic mode : 200 uL
Slide : 50 uL automatic cycle
Stability : Up to 48 hours for CBC/DIFF
Operating sample mode :
Autoloader 15 racks (150 tubes) capacity
Continuous feed for 8-racks, 160 slides capacity
Sample mixing with end-over-end rack rotation
Open tube in STAT mode
Identification :
Alphanumeric, Bar-code reader (internal and external)
Automatic 3-line printing on the slide using indelible ink
Flags : 46 possible pathologic flags

--------------------------------------------------------------------------------

Results
Parameters Precision (cv %) Linearity
WBC < 2% 0-150 x 10&sup3; / mm&sup3;
RBC < 2% 0-8 x 106 / mm&sup3;
HGB < 1% 0-24 g/dL
HCT < 2% 0-67%
PLT (whole blood) < 5% 0-1900 x 10&sup3; / mm&sup3;
PLT (PLT concentrate) < 5% 0-2800 x 10&sup3; / mm&sup3;
LYM < 5% - -
MON < 15% - -
NEU < 3% - -
EOS < 25% - -
BAS < 40% - -

--------------------------------------------------------------------------------

ABX Pentra DX 120 :
Methods of measurement: Flow cytometry, Cytochemistry, impedance, absorbance, optical cytometry and fluoro-flowcytometry
QUADIMENSION Concept: Automatic correction of the leukocyte count based on 4 independent principles.
DHSS*: Focused flow cytometry and sequential measurement (impedance and absorbance)
Automatic reflex testing: Selective and programmable (hematology parameters alarms and flags)
Rack rotation mixing of samples: Smooth and efficient
Liquid valves (no pinch valves): Reliability and increased precision

--------------------------------------------------------------------------------

SPS Evolution :
Drop needle system: Auto-cleaning drop needle system. Calibration of blood drop.
Smearing system: No inter-sampling contamination, No carry-over, Easy to replace.
Programmable staining protocols: MGG, Wright, Wright Giemsa.

--------------------------------------------------------------------------------

Reagents DX 120
Reference Designation
0901020 ABX Diluent 20 L
0901010 ABX Diluent 10 L
0204050 ABX Basolyse 5 L
0902010 ABX Alphalyse 1 L
0904011 ABX Fluocyte 0.5 L
0206013 ABX Leucodiff 1 L
0903010 ABX Cleaner 1 L
0401005 ABX Minoclair 0.5 L

--------------------------------------------------------------------------------

SPS Evolution :
None here Ref. Designation Packaging
A01A00006 METHANOL 2,5L 4 x bottle (2,5 liters)
A01A00004 BUFFER 6,8 Tablet 1 x 100 tablets
A01A00005  BUFFER 7,2 Tablet 1 x 100 tablets
A01A00007 Giemsa 0,5L 6 x bottles (0,5 liter)
A01A00008 May-GRUNWALD 0,5L 6 x bottles (0,5 liter)

--------------------------------------------------------------------------------

Controls and calibrators :
ABX Difftrol (3 ml vial)
Controls and Calibrators Ref. Designation
2062203 Twin-pack: 2 N + floppy
2062204 Twin-pack: 1 L 1 H + floppy

ABX Minotrol 8 (2 mL vial)
Controls and Calibrators Ref. Designation
2205002 Box G: 5 N
2207123 Box H: 5 N 1 H 1 L
2211123 Box I: 5 N 3 H 3 L
2012202 Twin-pack: 2 N
2012204 Twin-pack: 1 H 1 L

ABX Minotrol Retic (3 mL vial)
Controls and Calibrators Ref. Designation
2072201 Twin-pack: 2 N + floppy
2072202 Twin-pack: 1 L 1 H + floppy

ABX Erytrol (2 mL vial)
Controls and Calibrators Ref. Designation
2072203 Twin pack 2 x level 3
2072204 Twin pack 1 x level 1 and 2

ABX Minocal (3 mL vial)
Controls and Calibrators Ref. Designation
2032002 Minocal: 1 x 2 mL
