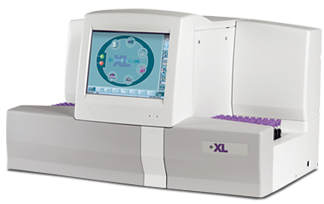

ABX PENTRA XL 80血液分析仪英文版介绍

姚邵琪

Innovatives features:
Autoloader with continuous loading capability
STAT sampling on open and closed tube
Microsampling from whole blood (CBC : 30 µL - DIFF: 53 µL)
Integrated Validation Station with LCD-color touch screen
Automatic Sample Re-run
Customized Dilution Ratio (CDR)
Windows XP
MDSS* technology
DHSS* technology


*HORIBA ABX patents
--------------------------------------------------------------------------------

Technical
Weight : 122 lbs, 55 kg.
Power supply : 100/240 V - 50/60 Hz - 300 VA.
Dimensions (HxWxD) : 32.3 x 22.4 x 21.5 in, 82 x 57 x 54 cm.
Printer : Laser.
Throughput : 80 samples/hour.
Data processing :
Windows XP
Floppy Disk & CDROM reader, RS232C, TCP/IP, 2 x USB1 Mono and bi-directional connection.
ASTM protocol
Memory capacity :10 000 results + graphics

--------------------------------------------------------------------------------

Samples
80 samples/hour (open or closed tube) :
Parameters (26) :
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, PLT, MPV, *PCT, *PDW % and # NEU, LYM, MON, EOS, BAS
Plus:
*ALY = Atypical Lymphocytes (# and %)
*LIC = Large Immature Cells (# and %)

* RUO (Research Use Only)
Graphs :
High-definition LMNE color matrix
PLT, RBC, WBC/BAS curves
Volume :
CBC mode : 30 µL
CBC + DIFF mode : 53 µL
Stability : 48 hours
Operating sample mode :
Autoloader 10 racks (100 tubes) capacity
Sample mixing with end-over-end tube rotation
Closed or open STAT tube
Identification : Alphanumeric, Barcode reader (internal and external)
--------------------------------------------------------------------------------

Results
Parameters Precision (cv %) Linearity CDR
WBC < 2% 0-120 x 10&sup3;/&micro;L 120-360 x 10&sup3;/&micro;L
RBC < 2% 0-8 106/&micro;L 0-8 X 106/&micro;L
HGB (whole blood) <1% 0-24 g/dl 0-24 g/dL
HCT < 2%  0-67% 0-67%
PLT (whole blood) < 5% 0-1900 x 10&sup3;/&micro;L 1900-3800 x 10&sup3;/&micro;L
PLT (PLT concentrate) < 5% 0-2800 x 10&sup3;/&micro;L 2800-5600 x 10&sup3;/&micro;L

--------------------------------------------------------------------------------

Concept and Technology
MDSS*: Microsampling and perfect homogenization of samples and reagents
Methods of measurement: Cytochemistry, photometry, impedance, optical and flow cytometry (LMNE matrix).
DHSS*: Focused flow cytometry and sequential measurement (impedance and optical)
Automatic sample re-run : Selective and programmable (parameters alarms, dilution, delta check)
End-over-end mixing (360°) of tubes: reference method (smooth and efficient)
Liquid valves (no pinch valves): Reliability and increased precision
No compressor (stepper motor): Reliability, less maintenance and noise

*HORIBA ABX patent
--------------------------------------------------------------------------------

Reagents
none here Ref. Designation
0206010 ABX EOSINOFIX 1L
0901020 ABX DILUENT 20L
0901010 ABX DILUENT 10L (for version >= 1.6.1)
0903010 ABX CLEANER 1L
0906003 ABX BASOLYSE II 1L
0906004 ABX ALPHALYSE 0,4L
0906013 ABX LYSEBIO 0,4L
0401005 ABX Minoclair 0.5 L

--------------------------------------------------------------------------------

Controls and calibrators
ABX Difftrol (3 ml vial)
Controls and Calibrators Ref. Designation
2062203 Twin-pack: 2 N + floppy
2062204 Twin-pack: 1 L 1 H + floppy

ABX Minotrol 8 (2 mL vial)
Controls and Calibrators Ref. Designation
2205002 Box G: 5 N
2207123 Box H: 5 N 1 H 1 L
2211123 Box I: 5 N 3 H 3 L
2012202 Twin-pack: 2 N
2012204 Twin-pack: 1 H 1 L

ABX Minocal (2 mL vial)
Controls and Calibrators Ref. Designation
2032002 Minocal: 1 x 2 mL
